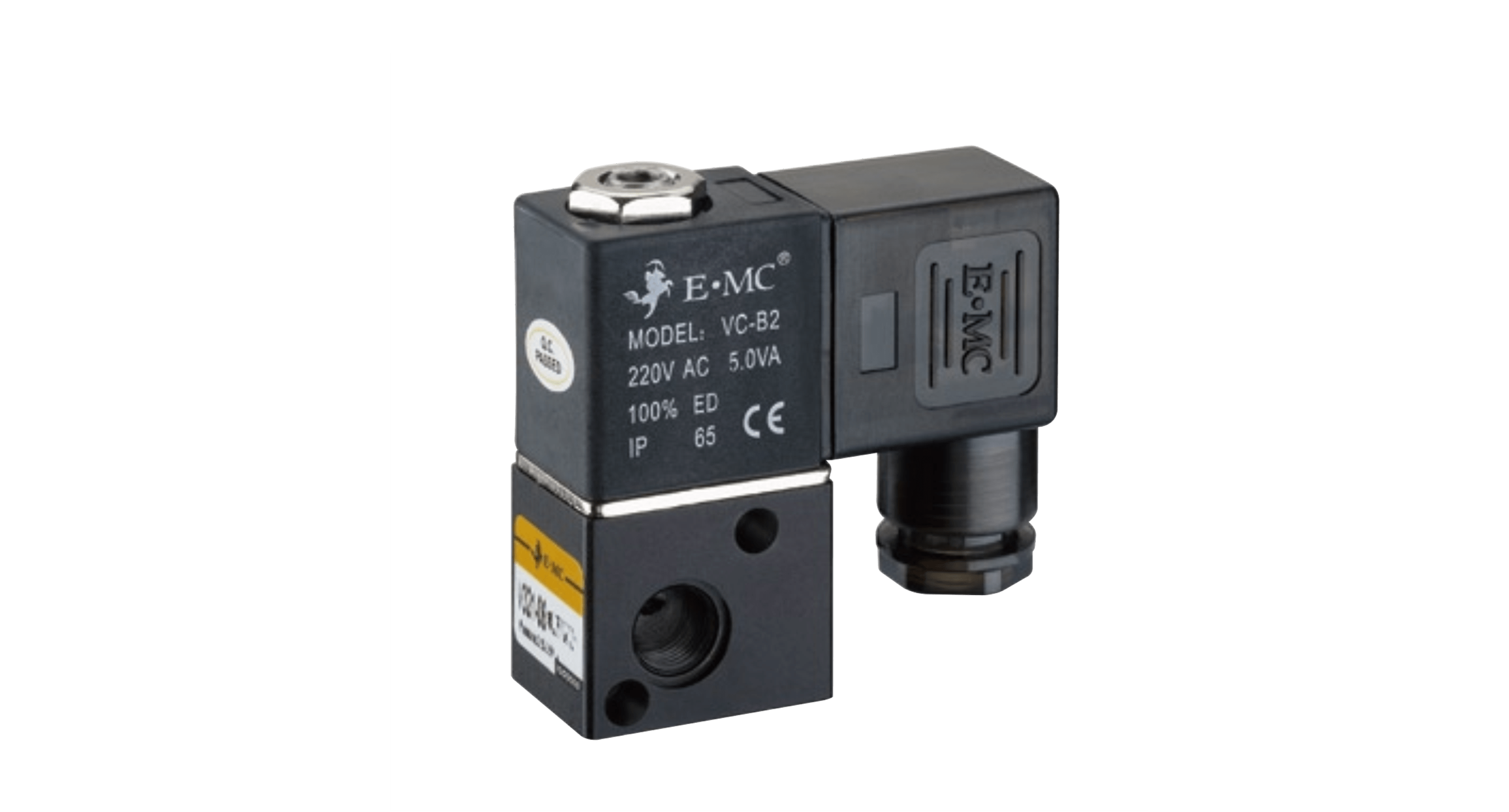

V Series Solenoid Valve(3/2)

•Various voltages and working styles are available.

•Different surface treatment, thread types (G,PT,NPT)are availlable.

•With manual installation, easy to debugging.

.PDF
2D/3D CAD

Configure your product
Previous Next
Back
How to order? Specification Combination of Schematic Diagram TT Internal structure Main Part structure Flow Chat&Main dimension

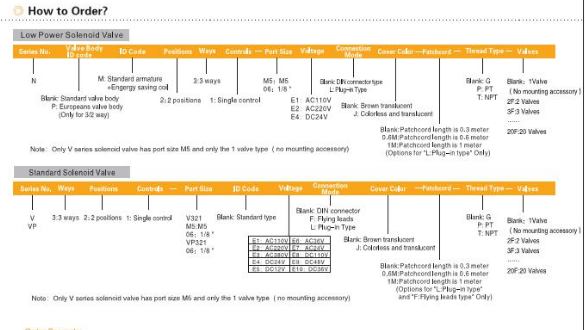

How to order?

Order Example:

N series solenaid valvo,standard port+Eingergy saving col,3/2 way, single control,1/8" port size, standard co,DC24V, 2 valves DIN connector.Gthread,ERP codel8: NM231-06E4-2F

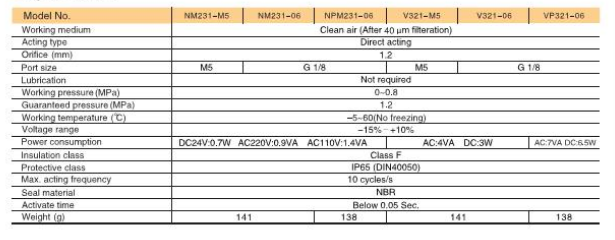

Specification

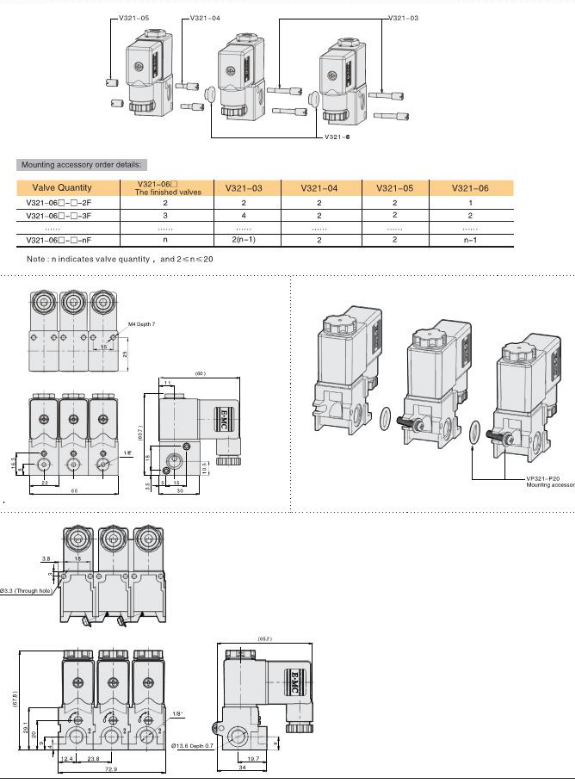

Combination of Schematic Diagram TT

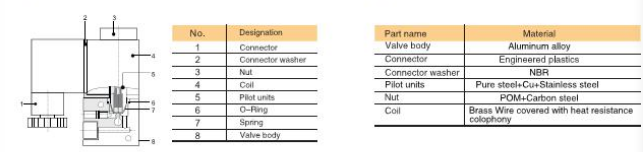

Internal structure Main Part structure

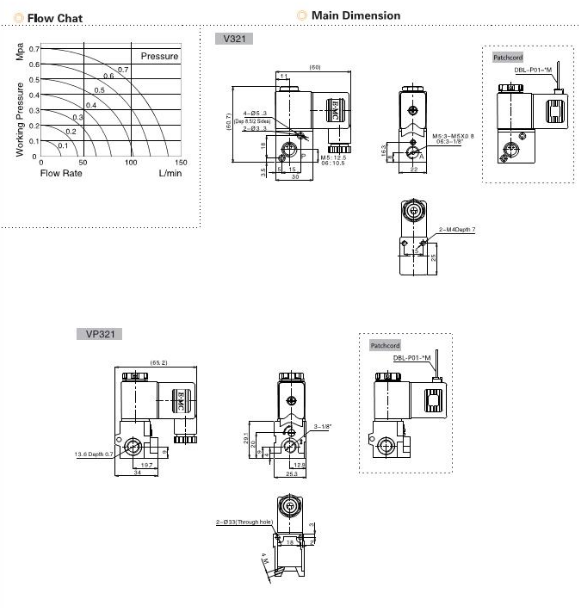

Flow Chat&Main dimension
