NCM NFPA Standard Cylinder

NCM NFPA Standard Cylinder.PDF

2D/3D CAD

Configure your product

Previous Next

Back

Specifications How to Order? Stroke Internal Structure Main Dimension

Specifications

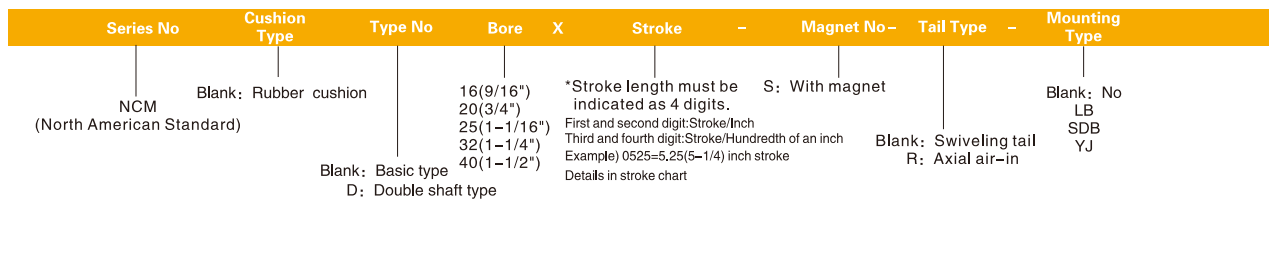

How to Order?

Order Example:

NCM series， Double shaft type， Bore 32 mm， stroke 2 inch， with magnet， No Mounting type， Swiveling tail

ERP code is:NCMD32×0200-S

Note: If using a cylinder with different mounting accessories， please use this sequential coding: LB/SDB/YJ

Stroke

Internal Structure

Main Dimension
