Specifications

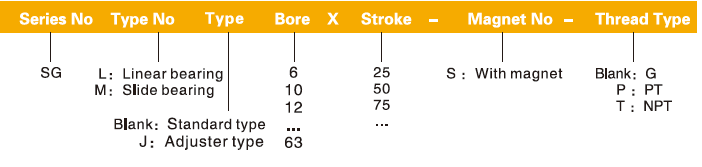

How to Order?

Order Example:
SG series, linear bearing, bore 16mm, stroke 30mm, EPR code is: SGL16X30-S Cylinders with cylinder bore of φ6 and φ10 are available in non-adjustable types and cylinders without linear bearings

Stroke

Bore (mm)	Standard Stroke (mm)	Max. Stroke (mm)
6	5 10 15 20	20
10	5 10 15 20 25 30	30
12	10 20 25 30 40 50 60 70 75 80 90 100 125 150	150
16	10 20 25 30 40 50 60 70 75 80 90 100 125 150 175 200	200
20/25	20 25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250	250
32~63	25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250	250

Note: the middle non-standard stroke is made by adding a pad in the cylinder of standard stroke; The φ12～φ32cylinder diameter corresponds to every 1mm stroke, and the φ40 ~φ63 cylinder diameter corresponds to every 5mm stroke; For example, order SGL20*47 non-standard travel cylinder, it is made from SGL20*50 standard travel cylinder with 3mm gasket, its external size,installation size and SGL20*50 the same
