RV Series Standard/ Low Power Solenoid Valve (3/2 way)
RV Series Standard/ Low Power Solenoid Valve (3/2 way).PDF
2D/3D CAD

Configure your product
Previous Next
Back
How to Order? 规格 How to Order? Specifications Flow Chat Internal Structure Main Dimension

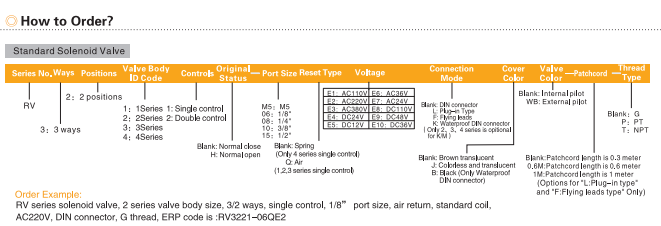

How to Order?

规格
Model No. N1R231-M5
N1R232-M5		 N1R231-06
N1R232-06		 N2R231-06
N2R232-06		 N2R231-08
N2R232-08		 N3R231-08
N3R232-08		 N3R231-10
N3R232-10		 N4R231-10
N4R232-10		 N4R231-15
N4R232-15
Port size M5 G1/8 G1/8 G1/4 G1/4 G3/8 G3/8 G1/2
Sectional area(mm) 5.5(CV=0.31) 12(CV=0.67) 14(CV=0.78) 16(CV=0.89) 25(CV=1.40) 30(CV=1.68) 50(CV=2.79) 50(CV=2.79)
Working medium Clean air(After 40 u m filteration)
Acting type Internal pilot type/External pilot type
Reset type Air reset Spring reset /Air reset
Lubrication Not required
Working pressure(MPa) 0.15-0.8
Guaranteed pressure(MPa) 1.2
Working temperature(℃) -20-70(No freezing)
Voltage range -15%~10%
Power consumption DC24V:0.6W DC24V:0.7W AC22V:0.9VA AC110V:1.4VA
Insulation class F Class
Protection class IP65(DIN40050)
Max. acting frequency 5 Cycles/s
Activate time(S) <0.05
Weight(g) N1R231: 102
N1R232:169		 N2R231:107
N2R232:303		 N3R231:260
N3H232:370		 N4R231:443
N4R232:569
How to Order?

Specifications
Model No. RV3211-M5
RV3212-M5		 RV3211-06
RV3212-06		 RV3221-06
RV3222-06		 RV3221-08
RV3222-08		 RV3231-08
RV3232-08		 RV3231-10
RV3232-10		 RV3241-10
RV3242-10		 RV3241-15
RV3242-15
Port size M5 G1/8 G1/8 G1/4 G1/4 G3/8 G3/8 G1/2
Sectional area(mm) 2 positions :5.5(CV=0.31) 2 positions:12(CV=0.67) 2 positions:14(CV=0.78) 2 positions:16(CV=089) 2 positions:25(CV=1.40) 2 positions:3(CV=1.63) 2 positions:50(CV=2.79) 2 positions:50(CV=2.79)
Working medium Clean air(After 40 u m filteration)
Acting type Internal pilot type/External pilot type
Reset type Air reset Spring reset /Air reset
Lubrication Not required
Working pressure(MPa) 0.15~0.8
Guaranteed pressure(MPa) 1.2
Working temperature(℃) -20~70(No freezing)
Voltage range -15%~10%
Power consumption DC:2.8W ; AC:3.OVA DC:3.0W ; AC:4.0VA
Insulation class F Class
Protection class IP65(DIN40050)
Max. acting frequency 5 Cycles/s
Activate time(S) <0.05
Weight(g) RV3211:102
RV3212:169		 Rv3221: 107
Rv3222:303		 RV3231:260
RV3232:370		 RV3241:443
RV3242:569
Flow Chat













Internal Structure

Main Dimension

(mm)
Model/Sign A C D E F G H J K L M N O P Q R S W W1*
RV3211-M5 M5 19 13 16.5 18 0 26 3.3 3.1 15.5 21 6 27 55.2 33.9 1B.9 14.2 92.1 132.2
RV3211-06 G1/8 19 13 16.5 18 1.5 27 3.3 3.1 15.5 21 6 27 55.2 33.9 18 16 92.1 132.2
RV3221-06 G1/8 30 17 16 22 0 31 3.3 4.2 18.5 25 9.3 35 66.7 40.2 20 22 112.7 163.4
RV3221-08 G1/4 30 17 16 22 1.5 32 3.3 4.2 18.5 25 9.3 35 66.7 40.2 19.8 22.5 112.7 163.4
RV3231-08 G1/4 35 20 19.1 27 0 36.6 4.3 4.3 21.6 30 9.5 4o 69.2 40.2 24.6 24 124.3 175.4
RV3231-10 G3/8 35 20 19.1 27 2 36.6 4.3 4.3 21.6 30 9.5 40 69.2 40.2 24.6 24 124.3 175.4
RV3241-10 G3./8 40.5 27 24.8 34 0 45 4.3 5.2 21 48 11.5 50 74.2 40.2 29.3 31.5 144.7 199.4
RV3241-15 G1/2 40.5 27 24.8 34 2 45 4.3 5.2 21 48 11.5 50 74.2 40.2 29.3 31.5 144.7 199.4

Note: The dimensilon of NR series and RY series are same,The dimenslon of normal open type and normal close type are same,

W1"is the dimension of double control solenoid valve.
